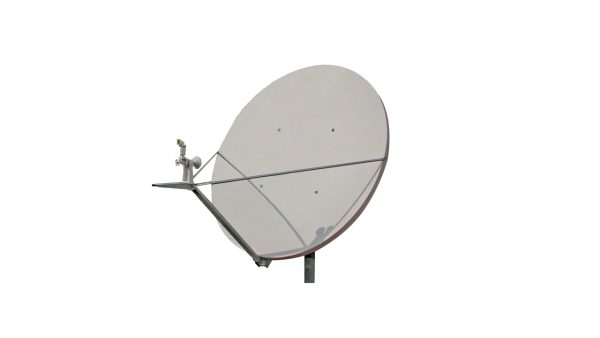

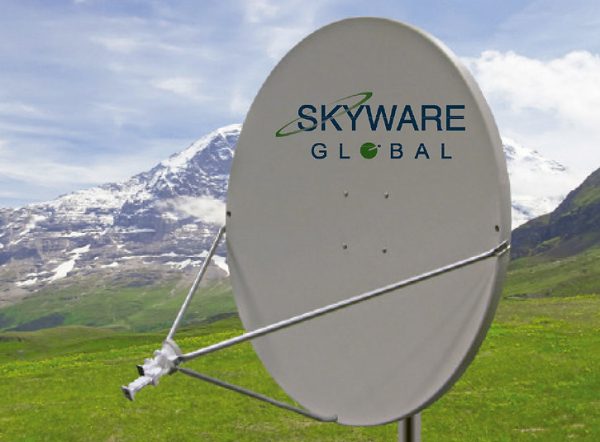

Skyware Global Antenna 1.2m Tx/Rx Ku Band Type 122 Class I

Skyware Global Type 122 1.2M Ku-Band Tx/Rx Class I Antenna System

The Skyware Global Type 122 1.2M Ku-Band Tx/Rx Class I Antenna System is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which strengthens the antenna and sustains its critical parabolic shape necessary for transmit performance. The reflector optics feature a long focal length for excellent cross-pol performance.

The precision Az/El mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/El mount secures the antenna to any 73-76 mm (2.88″ – 3.0″) O.D. mast and prevents slippage in high winds. A specially formulated powder paint process offers excellent protection from weather-related corrosion. The antenna features a unique feed which provides cross-pol performance that exceeds industry standards.

Features

• All materials comply with EU directive No. 2002/95/EC (RoHS).
• One-piece precision offset thermoset-molded reflector.
• Available with Ku-Band co-pol or cross-pol feeds
• Galvanized 19 mm (.75”) O.D. feed support legs for lightweight outdoor units (ODU’s)
• Plated hardware for maximum corrosion resistance
• Az/El mount includes both elevation and azimuth fine adjustments
• Class I system designed for typical lightweight Ku-Band RF Electronics
